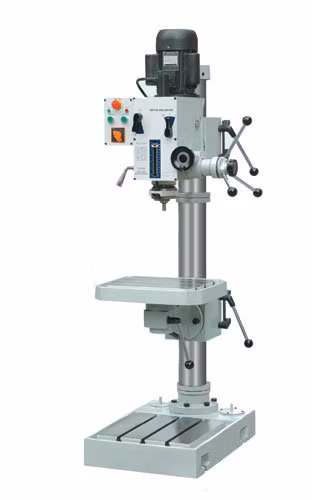

Vertical Universal Drilling Lathe Low Price Manual Milling Machine (KYZ40/KYZ45)

Basic Info

Model NO.	KYZ40/KYZ45
Precision	Precision
Certification	CE, ISO 9001
Condition	New
Color	Red
Drilling Capacity	40mm/45mm
Spindle Travel	130mm
Spindle Taper	M. T. 4 or R8
Available Size of Table	380*306mm
Max. Travel of Headstock	250mm
Table Leaned	45degree
Overall Height	1680mm
Packing Size	800X650X1830mm
Transport Package	Wooden Case
Specification	CE
Trademark	KY
Origin	China
Production Capacity	200 Piece/Month

Product Description

Bench lathe Machine Description

MODEL	KYZ40	KYZ45
Drilling capacity	40mm	45mm
Distance from spindle nose to table	725mm	725mm
Min. Distance from spindle axis to column	283mm	283mm
Distance from spindle nose to base	1125mm	1125mm
Spindle travel	130mm	130mm
Spindle taper	M. T. 4 or R8	M. T. 4 or R8
Step of spindle	6	6
Range of spindle speed 50Hz	80-1250r. P. M.	80-1250r. P. M.
60Hz	100-1500r. P. M.	100-1500r. P. M.
Swivel angle of table horizontally	360degree	360degree
Swivel angle of headstock (horizontally)	360degree	360degree
(perpendicularly)	90degree	90degree
Table leaned	45degree	45degree
Available size of table	380*306mm	380*306mm
Available size on base	418*415mm	418*415mm
Max. Travel of headstock	250mm	250mm
Max. Travel of table bracket	600mm	600mm
Motor Power	1.1Kw(1.5Hp)	1.5Kw(2Hp)
As customer's requirement
Overall height	1680mm	1680mm
Net weight	430kg	435kg
Gross weight	480kg	485kg
Packing size	800x650x1830mm	800x650x1830mm

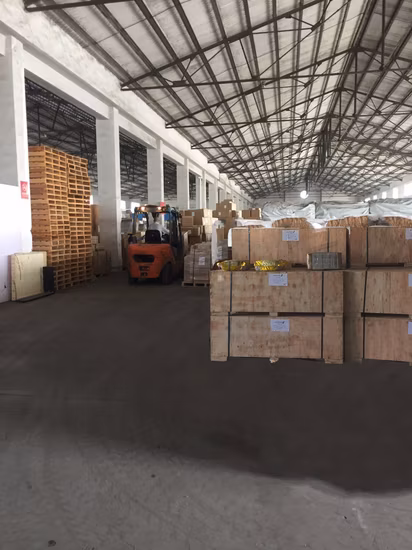

Warehouse to film
