Vmc850 Vertical Machining Center with Table 1000× 500mm

Basic Info

Model NO.	VMC850
After-sales Service	Yes
Warranty	12 Months
Controller	Siemens808d Ver.15
Table Size	1000X500mm
Table Max. Load	700kg
Table T Slots(No.-W×p)	5-18X100mm
Guideway Type	Linear Guideway / Hiwin
X/Y/Z Travel	800/500/500mm
Spindle Nose to Table	150-660mm
X/Y/Z Rapid Traverse	24/24/20m/Min
Spindle Taper Hole	Bt40
Spindle Motor Power	7.5 / 11 Kw
Spindle Speed	8000
Tool Magazine Capacity	24t /Arm /Taiwan
Positioning Accuracy	0.005/300
Repeated Positioning Accuracy	0.003/300
Transport Package	Wooden Case
Specification	2750X2300X2550
Trademark	ZINO
Origin	Jiangsu Province
HS Code	8458110090
Production Capacity	200 Pieces / Year

Product Description

ITEM	UNIT	VMC1270	VMC1160	VMC850	VMC650
Working table
Table size	mm	1300×700	1200X600 *1300x600	1000×500	900×400
Table Max. load	KG	1000	800	700	500
Table T slots(No.-W×P)	mm	5-18X100mm	5-18X100mm	5-18X100mm	5-18X100mm
Stroke & Feeding Speed
Guideway type		Linear guideway / HIWIN	Linear guideway / HIWIN	Linear guideway / HIWIN	Linear guideway / HIWIN
X/Y/Z Travel	mm	1200/700/600	1100/600/600	800/500/500	650/450/500
Spindle nose to table	mm	150-800	150-800	150-660	150-660
X/Y/Z Rapid traverse	m/min	20/20/18	24/24/20	24/24/20	24/24/18
X/Y/Z Feed Speed	mm/min	0-10000	0-10000	0-10000	0-10000
Spindle
Spindle taper hole		BT40	BT40	BT40	BT40
Spindle motor power	KW	11 / 15 KW	11 / 15 KW	7.5 / 11 KW	5.5 / 7.5 KW
Spindle speed	rpm	8000	8000	8000	8000
Tool
Tool type		Arm	Arm	Arm	Drum, *Arm
Tool magazine capacity	No./ Type	24T /Arm /Taiwan	24T /Arm /Taiwan	24T /Arm /Taiwan	16 /Drum*24T /Arm /Taiwan
Machine Accuracy
Positioning accuracyX/Y/Z Axis	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeated positioning accuracyX/Y/Z Axis	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine Dimensions
Overall dimensions	mm	3700×2750×2800	3300×2300×2550	2750×2300×2550	2320×2280×2500
Machine Weight (approx.)	KG	7500	6500	5200	4200

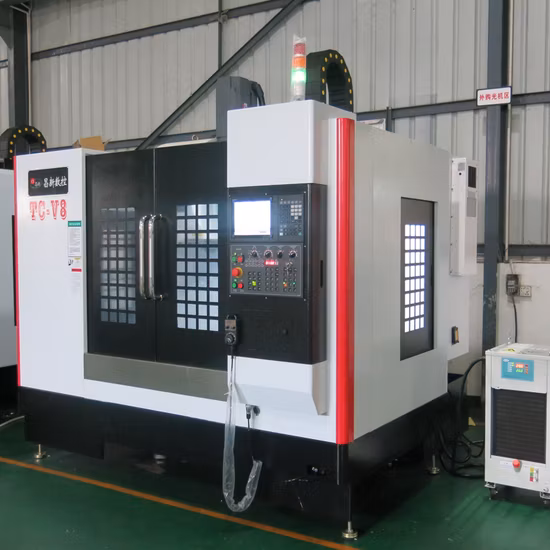

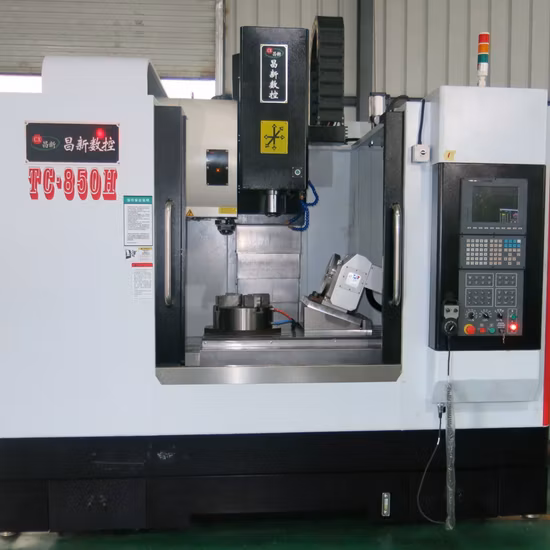

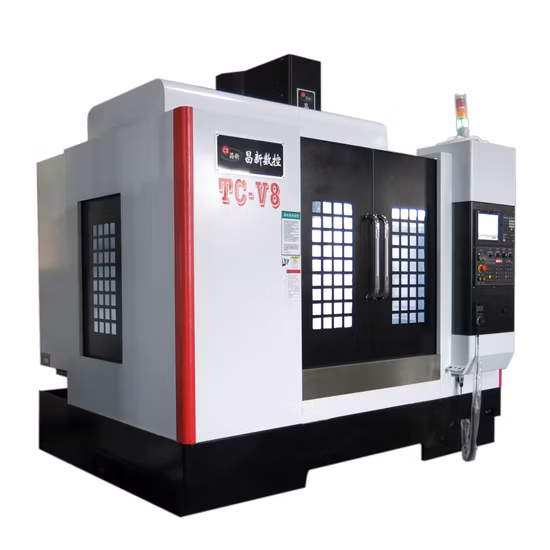

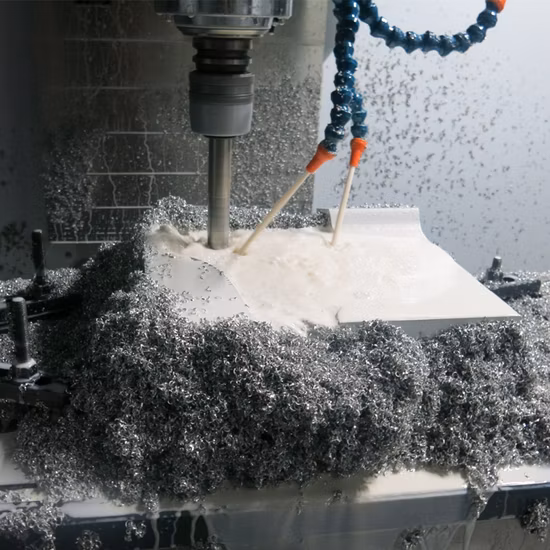

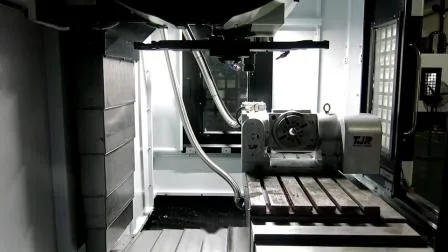

Machine Pictures

Vmc850 Vertical Machining Center with Table 1000× 500mm

FAG

•Q1. How can I get a quotation?

Leave us message with your purchase requirements and we will reply you ASAP.

And you may contact us directly by Telephone. +86 18501566670

•Q2. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.

•Q3. Can you provide training for operation CNC machines?

Yes, free training in our factory is available.

•Q4. How about your price?

Send me details about what you need, you will get the best price in China.

•Q5. What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase.

•Q6. What's the delivery time, and what's the package?

Normally the delivery time is about 30-45 days. All our Lathe machines are packed with sea worthy package
