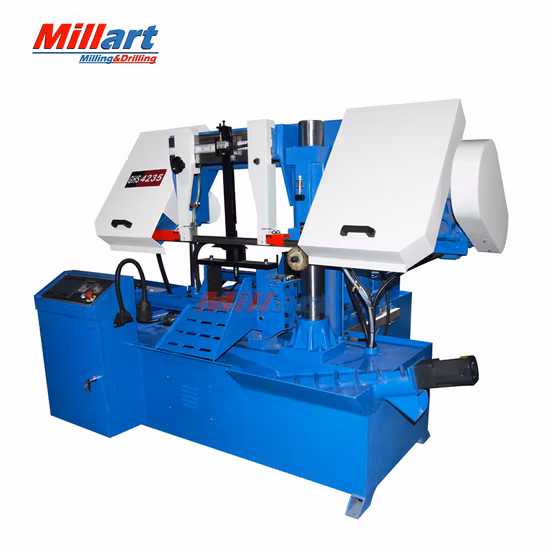

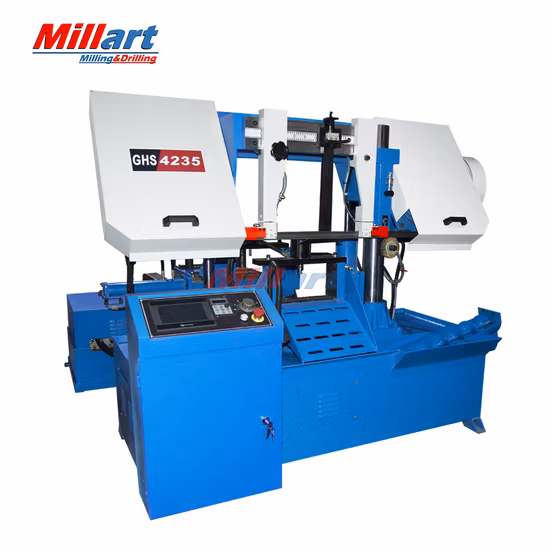

Hydraulic Double Column Band Saw Ghs4235 Band Sawing Machine with PLC

Basic Info

Model NO.	GHS4235
After-sales Service	If Any Parts Are Broken, We Will Send You for Free
Warranty	3 Years
Type	Band Sawing Machine
Horizontal Band Sawing Machine Type	Double Column
Saw Feed Direction	Horizontal
Track	Linear
Controlling Mode	PLC
Automatic Grade	Automatic
Precision	High Precision
Certification	CE, RoHS, ISO 9001
Condition	New
Max. Cutting Capacity	350-350X350mm
Saw Blade Speed	27,45,69mm/Min
Saw Blade Size	34X1.1X4115mm
Main Motor	4kw
Transport Package	Wood Case
Specification	CE ISO9001 RoHS
Trademark	L&T
Origin	Tengzhou China
HS Code	8461500090
Production Capacity	100 PC/Month

Product Description

Hydraulic Double Column Band Saw GHS4235 Band Sawing Machine with PLC

Feature:
Used for cutting all kinds of metal material
Reasonable structure,stable performance,high precision.

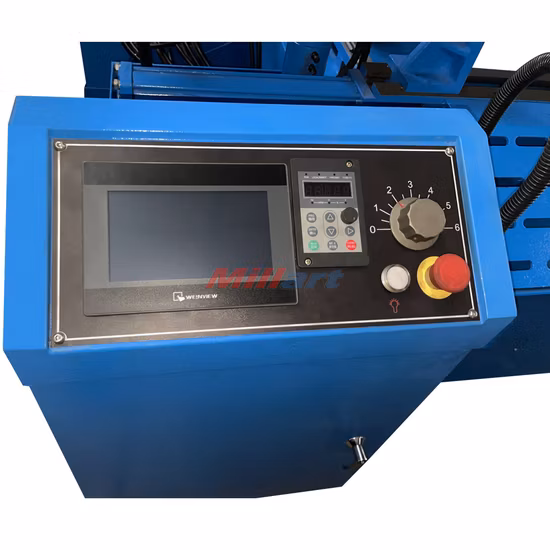

PLC control,high efficiency,automatic hydraulic bar feeder.Technical parameter:

Model	GHS4235
Max.cutting capacity (mm)	350-350x350
Saw blade speed (m/min)	27,45,69
Feed rate adjustment	Hydraulic stepless
Saw blade size (mm)	34x1.1x4115
Main motor (kw)	4
Hydraulic motor (kw)	0.75
Cooling motor power (kw)	0.04
One time feed length (mm)	500
Feed accuracy (mm)	±0.20
Main transmission structure	Worm gear transmission
Saw blade tension method	Manual
Working clamping mode	Hydraulic vice
Cleaning	wire brush & flood coolant
Dimensions(mm)	2200*1900*1550

Standard accessories:
PlC control system1 saw bladeHydraulic workpiece clamping 400mm travelBundle viseMaterial support roller stand 1 meterBlade protection coversBlade cleaning brushWork lampCoolant system
Optional accessories:
saw bladeHydraulic blade tensionAutomatic chip removal deviceVariable saw blade speedRoller table1mBlade breakage detector deviceFast drop protection device
