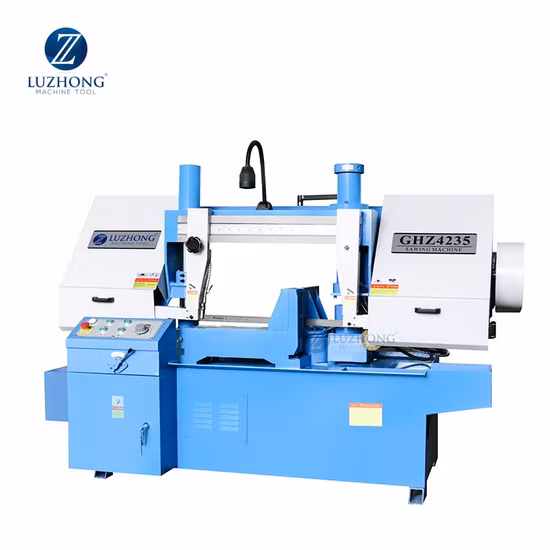

Double column rotary angle sawing metal GHz4240 Band Saw machine

Double column rotary angle sawing metal GHz4240 Band Saw machine

Overview Double column rotary angle sawing metal GHZ4240 Band Saw machine Product Description The main performance chara
Send inquiry
Basic Info
Model NO. GHZ4240
Precision High Precision
Certification GS, CE, RoHS, ISO 9001
Condition New
Name Double column rotary angle sawing metal GHz4240 Ba
Cutting capacity 90° Rectangular 400*400mm
Cutting capacity 45° Rectangular 400*330mm
Cutting capacity 30° Rectangular 400*350mm
Belt saw blade size 5000*41*1.3mm
Transport Package Plywood Case
Specification according to machine model
Trademark Luzhong Machine Tool
Origin China
HS Code 8461500090
Production Capacity 200 Set Per Month
Product Description
Double column rotary angle sawing metal GHZ4240 Band Saw machine

Product Description

Double column rotary angle sawing metal GHz4240 Band Saw machine

The main performance characteristics:

  1. extremely rigid dual-column cast -iron construction
  2. with heavy swivel console
  3. Three cutting speeds -directly shifted via main drive
  4. motor
  5. infinitely variable saw frame feed
  6. Horizontal saw frame swivels up to 45 °
  7. Saw frame automatically returns to home position at
  8. the end of each cut
  9. extra rigid ,adjustable saw blade guide
  10. including hydraulic workpiece clamping with clamping pressure control
  11. Standard equipment :hydraulic workpiece clamping ,1 saw blade belt ,material support stand ,coolant system ,work lamp ,operation manual
  12. Optional equipment :automatic blade breakage control ,fast drop protection devise ,hydraulic blade tension ,automatic chip removal device ,various blade linear
  13. speed ,blade protection covers ,wheel cover opening protection ,Ce standard electrical equipment

Product Parameters

Product main technical specifications:

SpecificationsGHZ4240
Cutting capacity 90°Rectangular400×400mm
Circular400mm
Cutting capacity 45°Rectangular400x330mm
Circular330mm
Cutting capacity 30°Rectangular400x350mm
Circular350mm
Saw blade speed27\45\69m/min
Belt saw blade size5000x41x1.3mm
Motor powerMain motor4kw
Oil pump motor0.75kw
Cooling pump motor0.09kw
Overall dimension2500x1600x2050mm
Weight1800kg

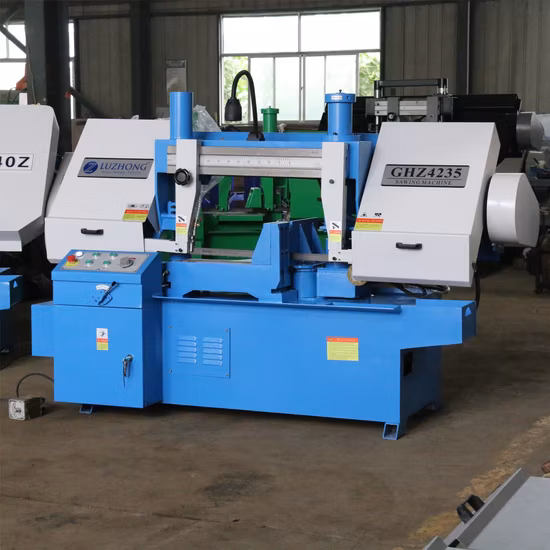

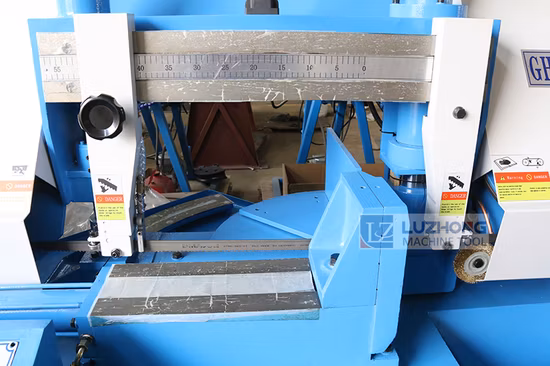

Detailed Photos

Double column rotary angle sawing metal GHz4240 Band Saw machine

Company Information

Double column rotary angle sawing metal GHz4240 Band Saw machine

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
